VRUT::RenderGlModule Class Reference

Basic renderglmodule module class. More...

#include <RenderGlModule.h>

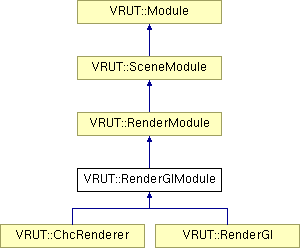

Inheritance diagram for VRUT::RenderGlModule:

VRUT::RenderModule VRUT::SceneModule VRUT::Module VRUT::ChcRenderer VRUT::RenderGl

List of all members.

Public Member Functions

 RenderGlModule (MODULE_ID _id, const wxString &_name, EventHandler *msgSink)
 Initialize render module - must be called with appropriate GL context set.
virtual ~RenderGlModule ()
 Class destructor.
virtual wxString GetDesc () const
 Get module description - Module overload.
virtual void Draw ()
 Main draw method with OpenGL calls - RenderModule overload.
virtual void Deinitialize ()
virtual bool Initialize ()
 initialize Opengl

Static Public Member Functions

static bool IsExtensionSupported (const char *szTargetExtension)
 Check if GL extension is supported (NeHeGL).
static int GetOglPrimitiveType (GeometryTriangles::PRIMITIVE_TYPE primType)
 Convert primitive type from GeometryTriangles::PRIMITIVE_TYPE to OpenGL definitions.

Protected Types

typedef std::vector< GLuint > GLIDList
typedef std::vector< VBOID > VBOIDList

Protected Member Functions

 WX_DECLARE_STRING_HASH_MAP (GLuint, TextureIDMap)
 WX_DECLARE_STRING_HASH_MAP (ShaderHandler, ShaderIDMap)
 WX_DECLARE_STRING_HASH_MAP (VBOID, VBOIDMap)
void clearCachedGeometry ()
 Release cached geometry.
void checkExtSupport ()
 Check support for some extensions.
void drawShader (const GeometryNode *node)
 Set fragment shader states or compile program if not available.
void drawLights () const
 Set light states.
void drawMaterial (const GeometryNode *node)
 Set material and texture states.
void buildTexture (const GeometryNode *node)
 Build new if not built already.
void drawVBO (const GeometryNode *node)
 Render geometry node using VBO or build it if not available.
void drawDispList (const GeometryNode *node)
 Render geometry node using display list or build it if not available.
void ResetNodes ()
 Reinitialize nodes on stack that were inserted to scene or somehow modified.
void drawBVHHierarchy () const
 Render AABBs of all BVH nodes.
virtual void processEvent (wxCommandEvent &evt)
 Process render event - RenderModule overload.

Protected Attributes

GLIDList dispListIDs
 GL IDs of cached geometry in display lists.
VBOIDMap vboIDMap
 Map of geometry names to cached Gl VBO.
VBOIDList VBOIDs
 GL IDs of cached geometry in display lists.
TextureIDMap textureIDMap
 Map of texture filenames to cached Gl texture ID.
GLIDList textureIDs
 GL IDs of scene textures.
ShaderIDMap shaderIDMap
 Map of material names to cached Gl shader handler.
bool useVBO
 Use VBO or display list?
Parameter::ParameterIdentificator useVBOParamID
 useVBO param identificator
bool vboSupported
 Is VBO supported?
bool shaderSupported
 Is fragment shader?
bool wireframe
 Draw wireframe?
Parameter::ParameterIdentificator wireframeParamID
 wireframe param identificator
bool lighting
 Enable lighting?
Parameter::ParameterIdentificator lightingParamID
 lighting param identificator
bool headlight
 Enable headlight?
Parameter::ParameterIdentificator headlightParamID
 headlight param identificator
bool initialized
 Is GL initialized - global GL states.
bool sceneInitialized
 Is scene initialized - display lists, VBOs, textures...
std::vector< bool > resetNodes
 Nodes (new nodes or modified nodes) to be reinitialized next draw cycle.
bool reset
 Any node needs reset?
wxMutex paramsMutex
 Mutex for any parameters accessed from Draw method and adjusted in processEvent (rendering is still in main thread).
bool drawBVH
 Are BVH AABBs to be drawn?
Parameter::ParameterIdentificator drawBVHParamID
 drawBVH param identificator
size_t texturesUsedLast
 Textures used in the last draw cycle.
bool sceneImportMode
 Is scene being imported and render data cached?
bool allowRedundantDeletes
Parameter::ParameterIdentificator allowRedundantDeletesParamID
 allowRedundantDeletes param identificator
bool vboRenderUpdated
 Ensures render update only once when building VBOs auxiliary.
Scene * scene
 Temporary scene pointer (valid only during Draw call).
PFNGLGENBUFFERSARBPROC glGenBuffersARB
 GL function prototypes for VBO support.
PFNGLBINDBUFFERARBPROC glBindBufferARB
PFNGLBUFFERDATAARBPROC glBufferDataARB
PFNGLDELETEBUFFERSARBPROC glDeleteBuffersARB
PFNGLCREATEPROGRAMOBJECTARBPROC glCreateProgramObjectARB
 GL extensions for shader.
PFNGLCREATESHADEROBJECTARBPROC glCreateShaderObjectARB
PFNGLSHADERSOURCEARBPROC glShaderSourceARB
PFNGLCOMPILESHADERARBPROC glCompileShaderARB
PFNGLATTACHOBJECTARBPROC glAttachObjectARB
PFNGLLINKPROGRAMARBPROC glLinkProgramARB
PFNGLUSEPROGRAMOBJECTARBPROC glUseProgramObjectARB
PFNGLDELETEOBJECTARBPROC glDeleteObjectARB
PFNGLGETINFOLOGARBPROC glGetInfoLogARB
PFNGLGETOBJECTPARAMETERIVARBPROC glGetObjectParameterivARB
PFNGLGETUNIFORMLOCATIONARBPROC glGetUniformLocationARB
PFNGLUNIFORM1FVARBPROC glUniform1fvARB
PFNGLUNIFORM2FVARBPROC glUniform2fvARB
PFNGLUNIFORM3FVARBPROC glUniform3fvARB
PFNGLUNIFORM4FVARBPROC glUniform4fvARB
PFNGLUNIFORM1IVARBPROC glUniform1ivARB
PFNGLUNIFORM2IVARBPROC glUniform2ivARB
PFNGLUNIFORM3IVARBPROC glUniform3ivARB
PFNGLUNIFORM4IVARBPROC glUniform4ivARB
PFNGLUNIFORMMATRIX2FVARBPROC glUniformMatrix2fvARB
PFNGLUNIFORMMATRIX3FVARBPROC glUniformMatrix3fvARB
PFNGLUNIFORMMATRIX4FVARBPROC glUniformMatrix4fvARB
PFNGLACTIVETEXTUREPROC glActiveTexture
PFNGLUNIFORM1IARBPROC glUniform1iARB

Classes

struct  ShaderHandler
 Shader handlers. More...
struct  ShaderParamID
 Shader param IDs. More...
struct  VBOID
 IDs for VBO. More...

Detailed Description

Basic renderglmodule module class.

Definition at line 27 of file RenderGlModule.h.

Member Typedef Documentation

typedef std::vector<GLuint> VRUT::RenderGlModule::GLIDList [protected]

Definition at line 31 of file RenderGlModule.h.

typedef std::vector<VBOID> VRUT::RenderGlModule::VBOIDList [protected]

Definition at line 64 of file RenderGlModule.h.

Constructor & Destructor Documentation

RenderGlModule::RenderGlModule ( MODULE_ID  _id,
const wxString &  _name,
EventHandler *  msgSink
)

Initialize render module - must be called with appropriate GL context set.

Class constructor

Listen to scene changes

Definition at line 28 of file RenderGlModule.cpp.

00029               : RenderModule(_id, _name, 0, msgSink),
00030               scene((Scene *)NULL)
00031 {
00032        wxASSERT_MSG(paramsMutex.IsOk(), wxT("<RenderGlModule>Failed to create mutex"));
00033        useVBO = false;
00034        REGISTER_PARAM_GUI_CHECKBOX(useVBOParamID, wxT("useVBO"), wxT("0"), wxT("Use VBO instead of display lists."));
00035        wireframe = false;
00036        REGISTER_PARAM_GUI_CHECKBOX(wireframeParamID, wxT("wireframe"), wxT("0"), wxT("Display scene in wireframe."));
00037        lighting = true;
00038        REGISTER_PARAM_GUI_CHECKBOX(lightingParamID, wxT("lighting"), wxT("1"), wxT("Enable lighting."));
00039        headlight = true;
00040        REGISTER_PARAM_GUI_CHECKBOX(headlightParamID, wxT("headlight"), wxT("1"), wxT("Enable headlight."));
00041        drawBVH = false;
00042        REGISTER_PARAM_GUI_CHECKBOX(drawBVHParamID, wxT("drawBVH"), wxT("0"), wxT("Draw BVH into the model"));
00043        allowRedundantDeletes = true;
00044        REGISTER_PARAM_GUI_CHECKBOX(allowRedundantDeletesParamID, wxT("allowRedundantDeletes"), wxT("1"), wxT("Allow redundant deletes when importing scene."));
00045
00046        initialized = vboSupported = shaderSupported = sceneInitialized
00047                                     = sceneImportMode = reset = vboRenderUpdated = false;
00048        texturesUsedLast = 0;
00049        glGenBuffersARB = NULL;
00050        glBindBufferARB = NULL;
00051        glBufferDataARB = NULL;
00052        glDeleteBuffersARB = NULL;
00053        glCreateProgramObjectARB = NULL;
00054        glCreateShaderObjectARB = NULL;
00055        glShaderSourceARB = NULL;
00056        glCompileShaderARB = NULL;
00057        glAttachObjectARB = NULL;
00058        glLinkProgramARB = NULL;
00059        glUseProgramObjectARB = NULL;
00060        glDeleteObjectARB = NULL;
00061        glGetInfoLogARB = NULL;
00062        glGetObjectParameterivARB = NULL;
00063        glGetUniformLocationARB = NULL;
00064        glUniform1fvARB = NULL;
00065        glUniform2fvARB = NULL;
00066        glUniform3fvARB = NULL;
00067        glUniform4fvARB = NULL;
00068        glUniform1ivARB = NULL;
00069        glUniform2ivARB = NULL;
00070        glUniform3ivARB = NULL;
00071        glUniform4ivARB = NULL;
00072        glUniformMatrix2fvARB = NULL;
00073        glUniformMatrix3fvARB = NULL;
00074        glUniformMatrix4fvARB = NULL;
00075        glActiveTexture = NULL;
00076        glUniform1iARB = NULL;
00078        REGISTER_LISTENER(Event::EVT_SCENE_NODE_INSERTED);
00079        REGISTER_LISTENER(Event::EVT_SCENE_NODE_REMOVED);
00080        REGISTER_LISTENER(Event::EVT_SCENE_NODE_MATERIAL_CHANGED);
00081        REGISTER_LISTENER(Event::EVT_SCENE_NODE_GEOMETRY_CHANGED);
00082        REGISTER_LISTENER(Event::EVT_RENDER_CACHE_START);
00083        REGISTER_LISTENER(Event::EVT_RENDER_CACHE_STOP);
00084 }

RenderGlModule::~RenderGlModule (  )  [virtual]

Class destructor.

Definition at line 87 of file RenderGlModule.cpp.

00088 {
00089        Deinitialize();
00090 }

Member Function Documentation

VRUT::RenderGlModule::WX_DECLARE_STRING_HASH_MAP ( GLuint  ,
TextureIDMap
) [protected]

VRUT::RenderGlModule::WX_DECLARE_STRING_HASH_MAP ( ShaderHandler  ,
ShaderIDMap
) [protected]

VRUT::RenderGlModule::WX_DECLARE_STRING_HASH_MAP ( VBOID  ,
VBOIDMap
) [protected]

void RenderGlModule::clearCachedGeometry (  )  [protected]

Release cached geometry.

Definition at line 93 of file RenderGlModule.cpp.

00094 {
00095        for (GLIDList::iterator it = dispListIDs.begin();
00096                it != dispListIDs.end(); it++)
00097        {
00098               if (*it != GL_ID_NONE)
00099               {
00100                      glDeleteLists(*it, 1);
00101                      *it = GL_ID_NONE;
00102               }
00103        }
00104        dispListIDs.clear();
00105        VBOIDs.clear();
00106        textureIDs.clear();
00107
00108        for (VBOIDMap::iterator it = vboIDMap.begin();
00109                it != vboIDMap.end(); it++)
00110        {
00111               if (it->second.verticesID != GL_ID_NONE)
00112                      glDeleteBuffersARB(1, &it->second.verticesID);
00113               if (it->second.indicesID != GL_ID_NONE)
00114                      glDeleteBuffersARB(1, &it->second.indicesID);
00115               if (it->second.normalsID != GL_ID_NONE)
00116                      glDeleteBuffersARB(1, &it->second.normalsID);
00117               if (it->second.texCoordsID != GL_ID_NONE)
00118                      glDeleteBuffersARB(1, &it->second.texCoordsID);
00119        }
00120        vboIDMap.clear();
00121
00122        for (TextureIDMap::iterator it = textureIDMap.begin();
00123                it != textureIDMap.end(); it++)
00124        {
00125               if (it->second != GL_ID_NONE)
00126                      glDeleteTextures(1, &(it->second));
00127        }
00128        textureIDMap.clear();
00129
00130        for (ShaderIDMap::iterator it = shaderIDMap.begin();
00131                it != shaderIDMap.end(); it++)
00132        {
00133               ShaderHandler * handler = &it->second;
00134               if (handler->program != GL_ID_NONE)
00135                      glDeleteObjectARB(handler->program);
00136               if (handler->fragmentShader != GL_ID_NONE)
00137                      glDeleteObjectARB(handler->fragmentShader);
00138               if (handler->vertexShader != GL_ID_NONE)
00139                      glDeleteObjectARB(handler->vertexShader);
00140               for (std::vector<ShaderParamID>::iterator parIt = handler->paramList.begin();
00141                       parIt != handler->paramList.end(); parIt++)
00142               {
00143                      if (parIt->textureID != GL_ID_NONE)
00144                             glDeleteTextures(1, &parIt->textureID);
00145               }
00146        }
00147        shaderIDMap.clear();
00148        sceneInitialized = false;
00149 }

void RenderGlModule::checkExtSupport (  )  [protected]

Check support for some extensions.

Definition at line 152 of file RenderGlModule.cpp.

00153 {
00154        if (!glGenBuffersARB)
00155               glGenBuffersARB = (PFNGLGENBUFFERSARBPROC) GLGETPROC("glGenBuffersARB");
00156        if (!glBindBufferARB)
00157               glBindBufferARB = (PFNGLBINDBUFFERARBPROC) GLGETPROC("glBindBufferARB");
00158        if (!glBufferDataARB)
00159               glBufferDataARB = (PFNGLBUFFERDATAARBPROC) GLGETPROC("glBufferDataARB");
00160        if (!glDeleteBuffersARB)
00161               glDeleteBuffersARB = (PFNGLDELETEBUFFERSARBPROC) GLGETPROC("glDeleteBuffersARB");
00162        if (!glCreateProgramObjectARB)
00163               glCreateProgramObjectARB = (PFNGLCREATEPROGRAMOBJECTARBPROC) GLGETPROC("glCreateProgramObjectARB");
00164        if (!glCreateShaderObjectARB)
00165               glCreateShaderObjectARB = (PFNGLCREATESHADEROBJECTARBPROC) GLGETPROC("glCreateShaderObjectARB");
00166        if (!glShaderSourceARB)
00167               glShaderSourceARB = (PFNGLSHADERSOURCEARBPROC) GLGETPROC("glShaderSourceARB");
00168        if (!glCompileShaderARB)
00169               glCompileShaderARB = (PFNGLCOMPILESHADERARBPROC) GLGETPROC("glCompileShaderARB");
00170        if (!glAttachObjectARB)
00171               glAttachObjectARB = (PFNGLATTACHOBJECTARBPROC) GLGETPROC("glAttachObjectARB");
00172        if (!glLinkProgramARB)
00173               glLinkProgramARB = (PFNGLLINKPROGRAMARBPROC) GLGETPROC("glLinkProgramARB");
00174        if (!glUseProgramObjectARB)
00175               glUseProgramObjectARB = (PFNGLUSEPROGRAMOBJECTARBPROC) GLGETPROC("glUseProgramObjectARB");
00176        if (!glDeleteObjectARB)
00177               glDeleteObjectARB = (PFNGLDELETEOBJECTARBPROC) GLGETPROC("glDeleteObjectARB");
00178        if (!glGetInfoLogARB)
00179               glGetInfoLogARB = (PFNGLGETINFOLOGARBPROC) GLGETPROC("glGetInfoLogARB");
00180        if (!glGetObjectParameterivARB)
00181               glGetObjectParameterivARB = (PFNGLGETOBJECTPARAMETERIVARBPROC) GLGETPROC("glGetObjectParameterivARB");
00182        if (!glGetUniformLocationARB)
00183               glGetUniformLocationARB = (PFNGLGETUNIFORMLOCATIONARBPROC) GLGETPROC("glGetUniformLocationARB");
00184        if (!glUniform1fvARB)
00185               glUniform1fvARB = (PFNGLUNIFORM1FVARBPROC) GLGETPROC("glUniform1fvARB");
00186        if (!glUniform2fvARB)
00187               glUniform2fvARB = (PFNGLUNIFORM2FVARBPROC) GLGETPROC("glUniform2fvARB");
00188        if (!glUniform3fvARB)
00189               glUniform3fvARB = (PFNGLUNIFORM3FVARBPROC) GLGETPROC("glUniform3fvARB");
00190        if (!glUniform4fvARB)
00191               glUniform4fvARB = (PFNGLUNIFORM4FVARBPROC) GLGETPROC("glUniform4fvARB");
00192        if (!glUniform1ivARB)
00193               glUniform1ivARB = (PFNGLUNIFORM1IVARBPROC) GLGETPROC("glUniform1ivARB");
00194        if (!glUniform2ivARB)
00195               glUniform2ivARB = (PFNGLUNIFORM2IVARBPROC) GLGETPROC("glUniform2ivARB");
00196        if (!glUniform3ivARB)
00197               glUniform3ivARB = (PFNGLUNIFORM3IVARBPROC) GLGETPROC("glUniform3ivARB");
00198        if (!glUniform4ivARB)
00199               glUniform4ivARB = (PFNGLUNIFORM4IVARBPROC) GLGETPROC("glUniform4ivARB");
00200        if (!glUniformMatrix2fvARB)
00201               glUniformMatrix2fvARB = (PFNGLUNIFORMMATRIX2FVARBPROC) GLGETPROC("glUniformMatrix2fvARB");
00202        if (!glUniformMatrix3fvARB)
00203               glUniformMatrix3fvARB = (PFNGLUNIFORMMATRIX3FVARBPROC) GLGETPROC("glUniformMatrix3fvARB");
00204        if (!glUniformMatrix4fvARB)
00205               glUniformMatrix4fvARB = (PFNGLUNIFORMMATRIX4FVARBPROC) GLGETPROC("glUniformMatrix4fvARB");
00206        if (!glActiveTexture)
00207               glActiveTexture = (PFNGLACTIVETEXTUREPROC) GLGETPROC("glActiveTexture");
00208        if (!glUniform1iARB)
00209               glUniform1iARB = (PFNGLUNIFORM1IARBPROC) GLGETPROC("glUniform1iARB");
00210
00211        if ( ( glGenBuffersARB != NULL ) &&
00212                ( glBindBufferARB != NULL ) &&
00213                ( glBufferDataARB != NULL ) &&
00214                ( glDeleteBuffersARB != NULL ) &&
00215                IsExtensionSupported("GL_ARB_vertex_buffer_object") )
00216        {
00217               vboSupported = true;
00218               LOG(wxT("<RenderGlModule>VBO supported"));
00219        }
00220        else
00221        {
00222               useVBO = vboSupported = false;
00223               LOGWARNING(wxT("<RenderGlModule>VBO not supported, switching to display lists"));
00224        }
00225
00226        if (IsExtensionSupported("GL_ARB_shader_objects") &&
00227                IsExtensionSupported("GL_ARB_shading_language_100") &&
00228                IsExtensionSupported("GL_ARB_vertex_shader") &&
00229                IsExtensionSupported("GL_ARB_fragment_shader") &&
00230                (glCreateProgramObjectARB != NULL) &&
00231                (glCreateShaderObjectARB != NULL) &&
00232                (glShaderSourceARB != NULL) &&
00233                (glCompileShaderARB != NULL) &&
00234                (glAttachObjectARB != NULL) &&
00235                (glLinkProgramARB != NULL) &&
00236                (glUseProgramObjectARB != NULL) &&
00237                (glDeleteObjectARB != NULL) &&
00238                (glGetInfoLogARB != NULL) )
00239        {
00240               shaderSupported = true;
00241               LOG(wxT("<RenderGlModule>Shaders supported"));
00242        }
00243        else
00244        {
00245               shaderSupported = false;
00246               LOGWARNING(wxT("<RenderGlModule>Shaders not supported"));
00247        }
00248
00249        if (glActiveTexture == NULL)
00250               LOGWARNING(wxT("<RenderGlModule>Multiple textures not supported"));
00251 }

void RenderGlModule::drawShader ( const GeometryNode *  node  )  [protected]

Set fragment shader states or compile program if not available.

Info message

Cache param locations and textures

Set params

Definition at line 254 of file RenderGlModule.cpp.

00255 {
00256        if (!shaderSupported)
00257               return;
00258
00259        const Material * material = scene->GetMaterial(node->GetMaterialID());
00260        if (material && material->shader && (material->shader->type==ShaderProgram::LANG_GLSL))
00261        {
00262               ShaderIDMap::const_iterator shdIt = shaderIDMap.find(material->name);
00263               if (shdIt != shaderIDMap.end())
00264                      glUseProgramObjectARB(shdIt->second.program);
00265               else
00266               {
00267                      ShaderHandler handler;
00268                      const ShaderProgram * shader = material->shader;
00269                      // Create Shader And Program Objects
00270                      handler.program = glCreateProgramObjectARB();
00271                      handler.fragmentShader = glCreateShaderObjectARB(GL_FRAGMENT_SHADER_ARB);
00272                      handler.vertexShader = glCreateShaderObjectARB(GL_VERTEX_SHADER_ARB);
00273                      // Load Shader Sources
00274
00275                      wxCharBuffer buff = shader->fsSource.ToAscii();
00276                      const char * fss = buff.data();
00277                      wxCharBuffer buff2 = shader->vsSource.ToAscii();
00278                      const char * vss = buff2.data();
00279                      glShaderSourceARB(handler.fragmentShader, 1, (const GLcharARB **)(&fss), NULL);
00280                      glShaderSourceARB(handler.vertexShader, 1, (const GLcharARB **)(&vss), NULL);
00281                      // Compile The Shaders
00282                      glCompileShaderARB(handler.fragmentShader);
00283                      glCompileShaderARB(handler.vertexShader);
00284                      // Attach The Shader Objects To The Program Object
00285                      glAttachObjectARB(handler.program, handler.fragmentShader);
00286                      glAttachObjectARB(handler.program, handler.vertexShader);
00287                      // Link The Program Object
00288                      glLinkProgramARB(handler.program);
00289                      glUseProgramObjectARB(handler.program);
00290
00292                      int infoLogLength = 0;
00293                      glGetObjectParameterivARB(handler.program, GL_OBJECT_INFO_LOG_LENGTH_ARB, &infoLogLength);
00294                      char * buffer = new char[infoLogLength];
00295                      glGetInfoLogARB(handler.program, infoLogLength, 0, buffer);
00296                      wxString info(buffer, wxConvUTF8);
00297                      delete [] buffer;
00298                      LOG(wxT("<RenderGlModule>Shader program message:\n") + info);
00299
00301                      for (std::vector<ShaderParam>::const_iterator it = shader->paramList.begin();
00302                              it != shader->paramList.end(); it++)
00303                      {
00304                             ShaderParamID param;
00305                             param.paramLocation = glGetUniformLocationARB(handler.program, it->name.ToAscii());
00306                             if (!it->imageName.IsEmpty())
00307                             {
00308                                    const Image * image = scene->GetImage(it->imageName);
00309                                    if (image)
00310                                           param.textureID = image->BuildOglTexture();
00311                             }
00312                             handler.paramList.push_back(param);
00313                      }
00314
00316                      //TODO: testing
00317                      texturesUsedLast = 0;
00318                      glUseProgramObjectARB(handler.program);
00319                      GLuint samplerID = 0;
00320                      for (size_t pID = 0; pID < handler.paramList.size(); pID++)
00321                      {
00322                             const ShaderParam * param = &shader->paramList[pID];
00323                             const ShaderParamID * paramID = &handler.paramList[pID];
00324                             switch (param->type)
00325                             {
00326                             case ShaderParam::FLOAT1:
00327                                    glUniform1fvARB(paramID->paramLocation, 1, param->fVals);
00328                                    break;
00329                             case ShaderParam::FLOAT2:
00330                                    glUniform2fvARB(paramID->paramLocation, 1, param->fVals);
00331                                    break;
00332                             case ShaderParam::FLOAT3:
00333                                    glUniform3fvARB(paramID->paramLocation, 1, param->fVals);
00334                                    break;
00335                             case ShaderParam::FLOAT4:
00336                                    glUniform4fvARB(paramID->paramLocation, 1, param->fVals);
00337                                    break;
00338                             case ShaderParam::SAMPLER:
00339                                    if (glActiveTexture != NULL)
00340                                    {
00341                                           glActiveTexture(GL_TEXTURE0 + samplerID);
00342                                           glBindTexture(GL_TEXTURE_2D, paramID->textureID);
00343                                           glUniform1iARB(paramID->paramLocation, samplerID++);
00344                                           texturesUsedLast++;
00345                                    }
00346                                    break;
00347                             }
00348                      }
00349
00350                      ShaderIDMap::Insert_Result res = shaderIDMap.insert(ShaderIDMap::value_type(material->name, handler));
00351                      if (!res.second)
00352                             LOGERROR(wxString::Format(wxT("<RenderGlModule>Failed to insert shader handler '%s' to hashmap"), material->name.c_str()));
00353               }
00354        }
00355        else
00356               glUseProgramObjectARB(0);
00357 }

void RenderGlModule::drawLights (  )  const [protected]

Set light states.

Definition at line 360 of file RenderGlModule.cpp.

00361 {
00362        unsigned lID = 0;
00363        const Scene::LightNodeIDList * lights = scene->GetLightIDs();
00364        for (Scene::LightNodeIDList::const_iterator lightIt = lights->begin();
00365                (lID < 7) && (lightIt != lights->end());
00366                lightIt++, lID++)
00367        {
00368               const LightNode * lightNode = (const LightNode *)scene->GetNode(*lightIt);
00369               if (lightNode && lightNode->GetLight())
00370               {
00371                      const Light * light = lightNode->GetLight();
00372                      glLightfv(LIGHTID[lID], GL_DIFFUSE, light->diffuse._v);
00373
00374                      scene->UpdateTransformation(*lightIt);
00375                      glPushMatrix();
00376                      glMultMatrixf(lightNode->GetWorldTransMatrix()->_m);
00377                      if (light->type == Light::OMNI)
00378                      {
00379                             GLfloat lpos[4] = { light->position.x, light->position.y, light->position.z, 1 };
00380                             glLightfv(LIGHTID[lID], GL_POSITION, lpos);
00381                             glEnable(LIGHTID[lID]);
00382                      }
00383                      else if (light->type == Light::DIRECTIONAL)
00384                      {
00385                             GLfloat lpos[4] = { light->direction.x, light->direction.y, light->direction.z, 0 };
00386                             glLightfv(LIGHTID[lID], GL_POSITION, lpos);
00387                             glEnable(LIGHTID[lID]);
00388                      }
00389                      else if (light->type == Light::SPOTLIGHT)
00390                      {
00391                             GLfloat lpos[4] = { light->position.x, light->position.y, light->position.z, 1 };
00392                             glLightfv(LIGHTID[lID], GL_POSITION, lpos);
00393                             glLightfv(LIGHTID[lID], GL_SPOT_DIRECTION, light->direction._v);
00394                             glLightf(LIGHTID[lID], GL_SPOT_EXPONENT, light->exponent);
00395                             glLightf(LIGHTID[lID], GL_SPOT_CUTOFF, light->angle);
00396                             glEnable(LIGHTID[lID]);
00397                      }
00398                      else
00399                             LOGWARNING(wxString::Format(wxT("<RenderGlModule>Light node '%s' has invalid light type"), lightNode->GetName().c_str()));
00400                      glPopMatrix();
00401               }
00402               else
00403                      glDisable(LIGHTID[lID]);
00404        }
00405 }

void RenderGlModule::drawMaterial ( const GeometryNode *  node  )  [protected]

Set material and texture states.

Missing material, using default

Definition at line 408 of file RenderGlModule.cpp.

00409 {
00410        const Material * material = scene->GetMaterial(node->GetMaterialID());
00411        bool tex = false;
00412        if (material)
00413        {
00414               unsigned texFlags = material->texFlags;
00415               glMaterialfv(GL_FRONT_AND_BACK, GL_DIFFUSE, material->diffuse._v);
00416               glMaterialfv(GL_FRONT_AND_BACK, GL_AMBIENT, material->ambient._v);
00417               glMaterialfv(GL_FRONT_AND_BACK, GL_EMISSION, material->emission._v);
00418               glMaterialfv(GL_FRONT_AND_BACK, GL_SPECULAR, material->specular._v);
00419               glMaterialf(GL_FRONT_AND_BACK, GL_SHININESS, material->shininess);
00420               if (!lighting)
00421                      glColor3fv(material->diffuse._v);
00422
00423               if (!material->imageName.IsEmpty() && node->GetID() < textureIDs.size())
00424               {
00425                      tex = true;
00426                      if (glActiveTexture != NULL)
00427                      {
00428                             for (size_t texUsed = 1; texUsed < texturesUsedLast; texUsed++)
00429                             {
00430                                    glActiveTexture(GLenum(GL_TEXTURE0 + texUsed));
00431                                    glBindTexture(GL_TEXTURE_2D, 0);
00432                             }
00433                             texturesUsedLast = 0;
00434                             glActiveTexture(GL_TEXTURE0);
00435                      }
00436                      glBindTexture( GL_TEXTURE_2D, textureIDs[node->GetID()] );
00437                      if (texFlags & Material::TEX_GEN_ENABLED)
00438                      {
00439                             glEnable(GL_TEXTURE_GEN_S);
00440                             glEnable(GL_TEXTURE_GEN_T);
00441                      }
00442                      else
00443                      {
00444                             glDisable(GL_TEXTURE_GEN_S);
00445                             glDisable(GL_TEXTURE_GEN_T);
00446                      }
00447
00448                      if (material->flags & Material::BLENDED)
00449                      {
00450                             if (material->texBlendSrc != GL_ID_NONE && material->texBlendDst != GL_ID_NONE)
00451                                    //TODO: default blendfunc if not defined?
00452                                    glBlendFunc(material->texBlendSrc, material->texBlendDst);
00453                      }
00454
00455                      if (texFlags & Material::TEX_ENV_REPLACE)
00456                             glTexEnvi(GL_TEXTURE_ENV, GL_TEXTURE_ENV_MODE, GL_REPLACE);
00457                      else if (texFlags & Material::TEX_ENV_DECAL)
00458                             glTexEnvi(GL_TEXTURE_ENV, GL_TEXTURE_ENV_MODE, GL_DECAL);
00459                      else if (texFlags & Material::TEX_ENV_BLEND)
00460                             glTexEnvi(GL_TEXTURE_ENV, GL_TEXTURE_ENV_MODE, GL_BLEND);
00461                      else if (texFlags & Material::TEX_ENV_ADD)
00462                             glTexEnvi(GL_TEXTURE_ENV, GL_TEXTURE_ENV_MODE, GL_ADD);
00463                      else
00464                             glTexEnvi(GL_TEXTURE_ENV, GL_TEXTURE_ENV_MODE, GL_MODULATE);
00465               }
00466        }
00467        else
00468        {
00470               glMaterialfv(GL_FRONT_AND_BACK, GL_DIFFUSE, VECTOR4(1,1,1,1)._v);
00471               glMaterialfv(GL_FRONT_AND_BACK, GL_AMBIENT, VECTOR4(0,0,0,0)._v);
00472               glMaterialfv(GL_FRONT_AND_BACK, GL_EMISSION, VECTOR4(0,0,0,0)._v);
00473               glMaterialfv(GL_FRONT_AND_BACK, GL_SPECULAR, VECTOR4(1,1,1,1)._v);
00474               glMaterialf(GL_FRONT_AND_BACK, GL_SHININESS, 1);
00475               if (!lighting)
00476                      glColor3fv(VECTOR4(1,1,1,1)._v);
00477        }
00478
00479        if (tex)
00480               glEnable(GL_TEXTURE_2D);
00481        else
00482               glDisable(GL_TEXTURE_2D);
00483
00484        if ( lighting && (!material || (material->flags & Material::UNLIT) == 0) )
00485        {
00486               glEnable(GL_LIGHTING);
00487 //            if (material->flags & Material::DOUBLE_SIDED)
00488               glLightModeli(GL_LIGHT_MODEL_TWO_SIDE, GL_TRUE);
00489 //            else
00490 //                   glLightModeli(GL_LIGHT_MODEL_TWO_SIDE, GL_FALSE);
00491        }
00492        else
00493               glDisable(GL_LIGHTING);
00494 }

void RenderGlModule::buildTexture ( const GeometryNode *  node  )  [protected]

Build new if not built already.

Resize textureIDs

Definition at line 497 of file RenderGlModule.cpp.

00498 {
00499        unsigned id = node->GetID();
00500        if (id >= textureIDs.size() || textureIDs[id] == GL_ID_NONE)
00501        {
00502               const Material * material = scene->GetMaterial(node->GetMaterialID());
00503               if (!material || material->imageName.IsEmpty())
00504               {
00505                      glDisable(GL_TEXTURE_2D);
00506                      return;
00507               }
00508               const Image * img = scene->GetImage(material->imageName);
00509               if (!img || !img->IsOk())
00510               {
00511                      glDisable(GL_TEXTURE_2D);
00512                      return;
00513               }
00514
00516               if (id >= textureIDs.size())
00517                      textureIDs.resize(id + 1, GL_ID_NONE);
00518
00519               wxString texKey = material->name;
00520               TextureIDMap::const_iterator texIt = textureIDMap.find(texKey);
00521               if (texIt != textureIDMap.end())
00522               {
00523                      glEnable(GL_TEXTURE_2D);
00524                      glBindTexture( GL_TEXTURE_2D, texIt->second );
00525                      textureIDs[id] = texIt->second;
00526               }
00527               else
00528               {
00529                      GLuint texID = img->BuildOglTexture();
00530                      textureIDs[id] = texID;
00531                      TextureIDMap::Insert_Result res = textureIDMap.insert(TextureIDMap::value_type(texKey, texID));
00532                      if (!res.second)
00533                             LOGERROR(wxString::Format(wxT("<RenderGlModule>Failed to insert texture '%s' to hashmap"), img->GetFilename()->GetFullPath().c_str()));
00534
00535                      unsigned texFlags = material->texFlags;
00536                      //TEXWRAP
00537                      if (texFlags & Material::TEX_UWRAP_CLAMP)
00538                             glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_S, GL_CLAMP);
00539                      else
00540                             glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_S, GL_REPEAT);
00541                      if (texFlags & Material::TEX_VWRAP_CLAMP)
00542                             glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_T, GL_CLAMP);
00543                      else
00544                             glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_T, GL_REPEAT);
00545                      //TEXFILTER
00546                      if (texFlags & Material::TEX_MIN_FILTER_POINT)
00547                             glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER, GL_NEAREST);
00548                      else if (texFlags & Material::TEX_MIN_FILTER_LINEAR)
00549                             glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER, GL_LINEAR);
00550                      else
00551                             glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER, GL_LINEAR_MIPMAP_LINEAR);
00552                      if (texFlags & Material::TEX_MAG_FILTER_POINT)
00553                             glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MAG_FILTER, GL_NEAREST);
00554                      else
00555                             glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MAG_FILTER, GL_LINEAR);
00556               }
00557        }
00558 }

void RenderGlModule::drawVBO ( const GeometryNode *  node  )  [protected]

Render geometry node using VBO or build it if not available.

Definition at line 561 of file RenderGlModule.cpp.

00562 {
00563        const Geometry * geom = scene->GetGeometry(node->GetGeometryID());
00564        const GeometryTriangles * geometry = (GeometryTriangles *)NULL;
00565        if (geom && geom->type == Geometry::GEOMETRY_TRIANGLE)
00566               geometry = (const GeometryTriangles *)geom;
00567        else
00568               return;
00569
00570        unsigned id = node->GetID();
00571        if (id >= VBOIDs.size())
00572               return;
00573
00574        if (VBOIDs[id].verticesID != GL_ID_NONE)
00575        {
00576               drawMaterial(node);
00577               drawShader(node);
00578
00579               VBOID cachedIDgroup = VBOIDs[id];
00580
00581               //TODO: support for multiple primitive type in single geometry object
00582               glEnableClientState(GL_VERTEX_ARRAY);
00583               glEnableClientState(GL_INDEX_ARRAY);
00584               glBindBufferARB(GL_ARRAY_BUFFER_ARB, cachedIDgroup.verticesID);
00585               glVertexPointer(3, GL_FLOAT, 0, (char *) NULL);
00586               glBindBufferARB(GL_ELEMENT_ARRAY_BUFFER_ARB, cachedIDgroup.indicesID);
00587               glIndexPointer(GL_INT, 0, (GLvoid *) NULL);
00588               if (cachedIDgroup.normalsID != GL_ID_NONE)
00589               {
00590                      glEnableClientState(GL_NORMAL_ARRAY);
00591                      glBindBufferARB(GL_ARRAY_BUFFER_ARB, cachedIDgroup.normalsID);
00592                      glNormalPointer(GL_FLOAT, 0, (char *) NULL);
00593               }
00594               if (cachedIDgroup.texCoordsID != GL_ID_NONE)
00595               {
00596                      glEnableClientState(GL_TEXTURE_COORD_ARRAY);
00597                      glBindBufferARB(GL_ARRAY_BUFFER_ARB, cachedIDgroup.texCoordsID);
00598                      glTexCoordPointer(2, GL_FLOAT, 0, (char *) NULL);
00599               }
00600
00601               for (GeometryTriangles::TriDescList::const_iterator indPrimType = geometry->triDescList.begin();
00602                       indPrimType != geometry->triDescList.end(); indPrimType++)
00603               {
00604                      unsigned nextInd = ( (indPrimType+1) == geometry->triDescList.end() ? unsigned(geometry->indices.size()) : (indPrimType+1)->first );
00605 #ifdef __WINDOWS__
00606 #pragma warning(push)
00607 #pragma warning(disable:4312)
00608 #endif
00610                      glDrawElements(GetOglPrimitiveType(indPrimType->second),
00611                                     GLsizei(nextInd - indPrimType->first),
00612                                     GL_UNSIGNED_INT,
00613                                     (const GLvoid *)(indPrimType->first * sizeof(GeometryTriangles::Indice)));
00614 #ifdef __WINDOWS__
00615 #pragma warning(pop)
00616 #endif
00617               }
00618               glDisableClientState(GL_VERTEX_ARRAY);
00619               glDisableClientState(GL_INDEX_ARRAY);
00620               glDisableClientState(GL_NORMAL_ARRAY);
00621               glDisableClientState(GL_TEXTURE_COORD_ARRAY);
00622        }
00623        else
00624        {
00625               VBOID cachedIDgroup;
00626               VBOIDMap::const_iterator vboIt = vboIDMap.find(geometry->GetName());
00627               if (vboIt != vboIDMap.end())
00628                      VBOIDs[id] = vboIt->second;
00629               else
00630               {
00631                      glGenBuffersARB(1, &cachedIDgroup.verticesID);
00632                      glBindBufferARB(GL_ARRAY_BUFFER_ARB, cachedIDgroup.verticesID);
00633                      //WARNING: std::array to C array - requires consecutive memory implementation
00634                      glBufferDataARB(GL_ARRAY_BUFFER_ARB, geometry->vertices.size() * sizeof(VECTOR3), &(*geometry->vertices.begin()), GL_STATIC_DRAW_ARB);
00635
00636                      glGenBuffersARB(1, &cachedIDgroup.indicesID);
00637                      glBindBufferARB(GL_ELEMENT_ARRAY_BUFFER_ARB, cachedIDgroup.indicesID);
00638                      //WARNING: std::array to C array - requires consecutive memory implementation
00639                      glBufferDataARB(GL_ELEMENT_ARRAY_BUFFER_ARB, geometry->indices.size() * sizeof(GLuint), &(*geometry->indices.begin()), GL_STATIC_DRAW_ARB);
00640
00641                      if (geometry->normals.size())
00642                      {
00643                             glGenBuffersARB(1, &cachedIDgroup.normalsID);
00644                             glBindBufferARB(GL_ARRAY_BUFFER_ARB, cachedIDgroup.normalsID);
00645                             //WARNING: std::array to C array - requires consecutive memory implementation
00646                             glBufferDataARB(GL_ARRAY_BUFFER_ARB, geometry->normals.size() * sizeof(VECTOR3), &(*geometry->normals.begin()), GL_STATIC_DRAW_ARB);
00647                      }
00648
00649                      if (geometry->texCoords.size())
00650                      {
00651                             glGenBuffersARB(1, &cachedIDgroup.texCoordsID);
00652                             glBindBufferARB(GL_ARRAY_BUFFER_ARB, cachedIDgroup.texCoordsID);
00653                             //WARNING: std::array to C array - requires consecutive memory implementation
00654                             glBufferDataARB(GL_ARRAY_BUFFER_ARB, geometry->texCoords.size() * sizeof(GeometryTriangles::TexCoord), &(*geometry->texCoords.begin()), GL_STATIC_DRAW_ARB);
00655                      }
00656
00657                      VBOIDs[id] = cachedIDgroup;
00658                      VBOIDMap::Insert_Result res = vboIDMap.insert(VBOIDMap::value_type(geometry->GetName(), cachedIDgroup));
00659                      if (!res.second)
00660                             LOGERROR(wxString::Format(wxT("<RenderGlModule>Failed to insert VBO for geometry '%s' to hashmap"), geometry->GetName().c_str()));
00661                      if (!vboRenderUpdated)
00662                      {
00663                             vboRenderUpdated = true;
00664                             wxCommandEvent rndEvt = Event::GET_EVT_RENDER_UPDATE(scene->GetID());
00665                             PostToKernel(rndEvt);
00666                      }
00667               }
00668        }
00669 }

void RenderGlModule::drawDispList ( const GeometryNode *  node  )  [protected]

Render geometry node using display list or build it if not available.

Simple polygonal normal generation

Definition at line 672 of file RenderGlModule.cpp.

00673 {
00674        const Geometry * geom = scene->GetGeometry(node->GetGeometryID());
00675        const GeometryTriangles * geometry = (GeometryTriangles *)NULL;
00676        if (geom && geom->type == Geometry::GEOMETRY_TRIANGLE)
00677               geometry = (const GeometryTriangles *)geom;
00678        else
00679               return;
00680
00681        unsigned id = node->GetID();
00682        if (id >= dispListIDs.size())
00683               return;
00684
00685        if (dispListIDs[id] != GL_ID_NONE)
00686               glCallList(dispListIDs[id]);
00687        else
00688        {
00689               GLuint cachedID = dispListIDs[id] = glGenLists(1);
00690               glNewList(cachedID, GL_COMPILE_AND_EXECUTE);
00691               {
00692                      drawMaterial(node);
00693                      drawShader(node);
00694
00695                      if (geometry)
00696                      {
00697                             size_t indiceIndex = 0;
00698                             size_t maxInd = geometry->indices.size();
00699                             const std::vector<VECTOR3> * vertices = &geometry->vertices;
00700                             const std::vector<VECTOR3> * normals = &geometry->normals;
00701                             size_t normalsCount = normals->size();
00702                             const std::vector<GeometryTriangles::TexCoord> * texCoords = &geometry->texCoords;
00703                             size_t texCoordsCount = texCoords->size();
00704                             const std::vector<GeometryTriangles::Indice> * indices = &geometry->indices;
00705
00706                             for (GeometryTriangles::TriDescList::const_iterator indPrimType = geometry->triDescList.begin();
00707                                     indPrimType != geometry->triDescList.end(); indPrimType++)
00708                             {
00709                                    GeometryTriangles::TriDescList::const_iterator endIndPrimType = indPrimType + 1;
00710                                    size_t endInd = ( endIndPrimType == geometry->triDescList.end() ? maxInd : endIndPrimType->first );
00711                                    endInd = __min( endInd, maxInd );
00712
00714                                    VECTOR3 autonormal;
00715                                    if (normals->empty() && (indiceIndex + 2 < endInd) )
00716                                    {
00717                                           std::vector<GeometryTriangles::Indice>::const_iterator indIt = indices->begin() + indiceIndex;
00718                                           VECTOR3 v1 = vertices->at(*indIt++);
00719                                           VECTOR3 v2 = vertices->at(*indIt++);
00720                                           VECTOR3 v3 = vertices->at(*indIt);
00721                                           autonormal = ((v2 - v1).Cross(v3 - v1)).Normalize();
00722                                    }
00723
00724                                    glBegin(GetOglPrimitiveType(indPrimType->second));
00725
00726                                    for ( ;       indiceIndex < endInd; indiceIndex++)
00727                                    {
00728                                           GeometryTriangles::Indice indice = indices->at(indiceIndex);
00729                                           if (indice < normalsCount)
00730                                                  glNormal3fv(normals->at(indice)._v);
00731                                           else
00732                                                  glNormal3fv(autonormal._v);
00733                                           if (indice < texCoordsCount)
00734                                                  glTexCoord2fv(texCoords->at(indice)._v);
00735                                           glVertex3fv(vertices->at(indice)._v);
00736                                    }
00737
00738                                    glEnd();
00739                             }
00740                      }
00741               }
00742               glEndList();
00743        }
00744 }

void RenderGlModule::ResetNodes (  )  [protected]

Reinitialize nodes on stack that were inserted to scene or somehow modified.

Build texture

Init shaders

Resize arrays

Definition at line 1012 of file RenderGlModule.cpp.

01013 {
01014        size_t ncount = 0;
01015        if (reset)
01016        {
01017               for (size_t i = 0; i < resetNodes.size(); i++)
01018               {
01019                      if (resetNodes[i])
01020                      {
01021                             NODE_ID id = NODE_ID(i);
01022                             wxASSERT_MSG(scene->GetNode(id), wxT("<RenderGlModule>Trying to reinitialize invalid scene node"));
01023                             wxASSERT_MSG(scene->GetNode(id)->IsOfType(SceneNode::GEOMETRY), wxT("<RenderGlModule>Trying to reinitialize scene node of invalid type"));
01024                             const GeometryNode * node = (const GeometryNode *)scene->GetNode(id);
01025                             if ((!sceneImportMode || allowRedundantDeletes)
01026                                     && id < dispListIDs.size()
01027                                     && dispListIDs[id] != GL_ID_NONE)
01028                             {
01029                                    glDeleteLists(dispListIDs[id], 1);
01030                                    dispListIDs[id] = GL_ID_NONE;
01031                             }
01032                             if (id < VBOIDs.size() && (!sceneImportMode || allowRedundantDeletes))
01033                                    VBOIDs[id] = VBOID();
01034                             if (id < textureIDs.size() && (!sceneImportMode || allowRedundantDeletes))
01035                                    textureIDs[id] = GL_ID_NONE;
01036
01038                             buildTexture(node);
01040                             drawShader(node);
01041
01043                             if (id >= VBOIDs.size())
01044                                    VBOIDs.resize(id + 1);
01045                             if (id >= dispListIDs.size())
01046                                    dispListIDs.resize(id + 1, GL_ID_NONE);
01047
01048                             resetNodes[i] = false;
01049                             ncount++;
01050                      }
01051               }
01052               reset = false;
01053               if (ncount)
01054                      LOGDEBUG(wxString::Format(wxT("<RenderGLMoudle>%i nodes reset"), ncount));
01055        }
01056 }

void RenderGlModule::drawBVHHierarchy (  )  const [protected]

Render AABBs of all BVH nodes.

Definition at line 1059 of file RenderGlModule.cpp.

01060 {
01061        if (!scene || !scene->GetBVH())
01062               return;
01063
01064        //BVH should be updated, updating here could allocate memory on module's heap
01065        //which could cause problems if module is unloaded before deallocating
01066        BVH * bvh = scene->GetBVH();
01067        std::deque<const BVHNode *> queue;
01068        queue.push_back(bvh->GetRoot());
01069
01070        VECTOR3 color(1,1,1);
01071        glDisable(GL_LIGHTING);
01072        glDisable(GL_TEXTURE_2D);
01073        while (queue.size())
01074        {
01075               const BVHNode * node = queue.front();
01076               queue.pop_front();
01077
01078               if (node)
01079               {
01080                      glColor3fv(color._v);
01081                      VECTOR3 v0(node->GetAABB()->MinBound);
01082                      VECTOR3 v7(node->GetAABB()->MaxBound);
01083                      VECTOR3 v1(v7.x, v0.y, v0.z);
01084                      VECTOR3 v2(v0.x, v7.y, v0.z);
01085                      VECTOR3 v3(v7.x, v7.y, v0.z);
01086                      VECTOR3 v4(v0.x, v0.y, v7.z);
01087                      VECTOR3 v5(v7.x, v0.y, v7.z);
01088                      VECTOR3 v6(v0.x, v7.y, v7.z);
01089                      glBegin(GL_LINE_STRIP);
01090                      glVertex3fv(v0._v);
01091                      glVertex3fv(v1._v);
01092                      glVertex3fv(v3._v);
01093                      glVertex3fv(v2._v);
01094                      glVertex3fv(v0._v);
01095                      glVertex3fv(v4._v);
01096                      glVertex3fv(v6._v);
01097                      glVertex3fv(v7._v);
01098                      glVertex3fv(v5._v);
01099                      glVertex3fv(v4._v);
01100                      glVertex3fv(v6._v);
01101                      glVertex3fv(v2._v);
01102                      glVertex3fv(v3._v);
01103                      glVertex3fv(v7._v);
01104                      glVertex3fv(v5._v);
01105                      glVertex3fv(v1._v);
01106                      glEnd();
01107
01108                      queue.push_back(node->GetLChild());
01109                      queue.push_back(node->GetRChild());
01110               }
01111        }
01112 }

void RenderGlModule::processEvent ( wxCommandEvent &  evt  )  [protected, virtual]

Process render event - RenderModule overload.

Scene events

Reimplemented from VRUT::RenderModule.

Reimplemented in VRUT::RenderGl, and VRUT::ChcRenderer.

Definition at line 1115 of file RenderGlModule.cpp.

01116 {
01117        RenderModule::processEvent(evt);
01118        switch (evt.GetEventType())
01119        {
01120        case Event::EVT_PARAM_SET:
01121               {
01122                      wxMutexLocker paramsLocker(paramsMutex);
01123                      Parameter::ParameterIdentificator pi = Parameter::ParameterIdentificator::FromEvent(evt);
01124                      if (pi == cameraIDParamID)
01125                      {
01126                             resetNodes.clear();
01127                             reset = false;
01128                      }
01129                      else if (pi == useVBOParamID ||
01130                              pi == wireframeParamID ||
01131                              pi == lightingParamID ||
01132                              pi == headlightParamID ||
01133                              pi == drawBVHParamID ||
01134                              pi == allowRedundantDeletesParamID)
01135                      {
01136                             UPDATE_PARAM_FROM_EVENT_BOOL(useVBOParamID, useVBO, evt);
01137                             UPDATE_PARAM_FROM_EVENT_BOOL(wireframeParamID, wireframe, evt);
01138                             UPDATE_PARAM_FROM_EVENT_BOOL(lightingParamID, lighting, evt);
01139                             UPDATE_PARAM_FROM_EVENT_BOOL(headlightParamID, headlight, evt);
01140                             UPDATE_PARAM_FROM_EVENT_BOOL(drawBVHParamID, drawBVH, evt);
01141                             UPDATE_PARAM_FROM_EVENT_BOOL(allowRedundantDeletesParamID, allowRedundantDeletes, evt);
01142                             initialized = false;
01143                             if (pi == lightingParamID)
01144                                    sceneInitialized = false;
01145                             if (GetSceneID() != SCENE_ID_NONE)
01146                             {
01147                                    wxCommandEvent evtRnd = Event::GET_EVT_RENDER_UPDATE(GetSceneID());
01148                                    PostToKernel(evtRnd);
01149                             }
01150                      }
01151               }
01152               break;
01153        default:
01154               break;
01155        }
01156
01158        if (evt.GetId() == int(GetSceneID()))
01159        {
01160               wxMutexLocker paramsLocker(paramsMutex);
01161               switch (evt.GetEventType())
01162               {
01163               case Event::EVT_SCENE_NODE_INSERTED:
01164               case Event::EVT_SCENE_NODE_REMOVED:
01165               case Event::EVT_SCENE_NODE_MATERIAL_CHANGED:
01166               case Event::EVT_SCENE_NODE_GEOMETRY_CHANGED:
01167               case Event::EVT_SCENE_NODE_TRANSFORMED:
01168                      {
01169                             scene = GetSceneMgr()->GetScene(GetSceneID());
01170                             if (scene)
01171                             {
01172                                    NODE_ID nodeID = NODE_ID(evt.GetInt());
01173                                    const SceneNode * node = scene->GetNode(nodeID);
01174                                    if (node && node->IsOfType(SceneNode::GEOMETRY))
01175                                    {
01176                                           if (nodeID >= resetNodes.size())
01177                                                  resetNodes.resize(nodeID + 1, false);
01178                                           reset = resetNodes[nodeID] = true;
01179                                    }
01180                                    scene = (Scene *)NULL;
01181                             }
01182                      }
01183                      break;
01184               case Event::EVT_RENDER_CACHE_START:
01185                      sceneImportMode = true;
01186                      break;
01187               case Event::EVT_RENDER_CACHE_STOP:
01188                      {
01189                             sceneImportMode = false;
01190                             LOG(wxString::Format(wxT("<EventHandler>Scene render data cached, ID %i"), evt.GetId()));
01191                      }
01192                      break;
01193               default:
01194                      break;
01195               }
01196        }
01197 }

wxString RenderGlModule::GetDesc (  )  const [virtual]

Get module description - Module overload.

Implements VRUT::Module.

Reimplemented in VRUT::RenderGl, and VRUT::ChcRenderer.

Definition at line 747 of file RenderGlModule.cpp.

00748 {
00749        return wxT("Create window and render given scene to it using BVH interface");
00750 }

void RenderGlModule::Draw (  )  [virtual]

Main draw method with OpenGL calls - RenderModule overload.

Clear buffer even if nothing to render

Check for scene changes and reinitialize modified nodes

Set projection matrix

Fit camera if scene is being imported

Lock camera but don't block readers if not needed

Set view matrix

Cull scene

Draw node

Draw node

Implements VRUT::RenderModule.

Reimplemented in VRUT::RenderGl, and VRUT::ChcRenderer.

Definition at line 870 of file RenderGlModule.cpp.

00871 {
00873        glClearColor(0.4, 0.3, 0.6, 0.0);
00874        glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);
00875
00876        wxMutexLocker paramsLocker(paramsMutex);
00877        scene = GetSceneMgr()->GetScene(GetSceneID());
00878        if (!scene)
00879               return;
00880
00881        Camera * camera = (Camera *)scene->GetNode(cameraID);
00882        //BVH should be updated, updating here could allocate memory on module's heap
00883        //which could cause problems if module is unloaded before deallocating
00884        BVH * bvh = scene->GetBVH();
00885        if (!camera || !bvh || !Initialize())
00886        {
00887               scene = (Scene *)NULL;
00888               return;
00889        }
00890
00891        vboRenderUpdated = false;
00893        ResetNodes();
00894
00896        glMatrixMode(GL_PROJECTION);
00897
00899 /*     if (sceneImportMode)
00900        {
00901               WriteLocker fitLock(*camera);
00902               scene->Fit(cameraID, false);
00903        }*/
00905        bool wrLockNeeded = !camera->IsValid();
00906        if (wrLockNeeded)
00907               camera->WriteLock();
00908        else
00909               camera->ReadLock();
00910        scene->UpdateTransformation(camera->GetID());
00911        unsigned w, h;
00912        camera->GetWidthHeight(&w, &h);
00913        glViewport(0, 0, w, h);
00914        glLoadMatrixf(camera->GetProjectionMatrix()->_m);
00916        glMatrixMode(GL_MODELVIEW);
00917        glLoadMatrixf(camera->GetWorldTransMatrix()->Inverse()._m);
00918
00920        BVH::ItemsList itemsList;
00921        BVH::BlendedList itemsListBlended;
00922        bvh->Cull(camera, &itemsList, &itemsListBlended);
00923        if (wrLockNeeded)
00924               camera->WriteUnlock();
00925        else
00926               camera->ReadUnlock();
00927
00928        if (drawBVH)
00929               drawBVHHierarchy();
00930
00931        //Scene lights
00932        drawLights();
00933
00934        //Draw solid geometry
00935        for (BVH::ItemsList::const_iterator nodeIt = itemsList.begin();
00936                nodeIt != itemsList.end(); nodeIt++)
00937        {
00938               const GeometryNode * node = (const GeometryNode *)scene->GetNode(*nodeIt);
00939               if (!node->IsActive())
00940                      continue;
00941
00942               glPushMatrix();
00943               glMultMatrixf(node->GetWorldTransMatrix()->_m);
00944
00946               if (useVBO && vboSupported)
00947                      drawVBO(node);
00948               else
00949                      drawDispList(node);
00950
00951               glPopMatrix();
00952        }
00953
00954        //Draw transparent geometry
00955        glEnable(GL_BLEND);
00956        for (BVH::BlendedList::const_reverse_iterator nodeIt = itemsListBlended.rbegin();
00957                nodeIt != itemsListBlended.rend(); nodeIt++)
00958        {
00959               const GeometryNode * node = (const GeometryNode *)scene->GetNode(nodeIt->second);
00960               if (!node->IsActive())
00961                      continue;
00962
00963               glPushMatrix();
00964               glMultMatrixf(node->GetWorldTransMatrix()->_m);
00965
00967               if (useVBO && vboSupported)
00968                      drawVBO(node);
00969               else
00970                      drawDispList(node);
00971
00972               glPopMatrix();
00973        }
00974        glDisable(GL_BLEND);
00975        scene = (Scene *)NULL;
00976 }

void RenderGlModule::Deinitialize (  )  [virtual]

Release OpenGL allocated video memory - RenderModule overload If called explicitly, be sure to set GLContext associated with window/module

Implements VRUT::RenderModule.

Reimplemented in VRUT::RenderGl, and VRUT::ChcRenderer.

Definition at line 979 of file RenderGlModule.cpp.

00980 {
00981        clearCachedGeometry();
00982        initialized = false;
00983 }

bool RenderGlModule::Initialize (  )  [virtual]

initialize Opengl

Using default (sphere) mapping for texture coordinates generation

Build texture

Init shaders

Resize arrays

Reimplemented in VRUT::RenderGl, and VRUT::ChcRenderer.

Definition at line 788 of file RenderGlModule.cpp.

00789 {
00790        if (!initialized)
00791        {
00792               glClearDepth(1.0f);
00793               glEnable(GL_DEPTH_TEST);
00794               glDepthFunc(GL_LEQUAL);
00795               glShadeModel(GL_SMOOTH);
00796               glHint(GL_PERSPECTIVE_CORRECTION_HINT, GL_NICEST);
00797               //TODO: the slowest solution!
00798               glEnable(GL_NORMALIZE);
00799               if (wireframe)
00800                      glPolygonMode(GL_FRONT_AND_BACK, GL_LINE);
00801               else
00802                      glPolygonMode(GL_FRONT_AND_BACK, GL_FILL);
00803
00804               if (lighting)
00805                      glEnable(GL_LIGHTING);
00806               else
00807                      glDisable(GL_LIGHTING);
00808
00809               //Init and draw headlight
00810               float ambient[] = { 0.2f, 0.2f, 0.2f, 1.0f };
00811               float diffuse[] = { 0.5f, 0.5f, 0.5f, 1.0f };
00812               glLightfv(GL_LIGHT0, GL_AMBIENT, ambient);
00813               glLightfv(GL_LIGHT0, GL_DIFFUSE, diffuse);
00814               glMatrixMode(GL_MODELVIEW);
00815               glLoadIdentity();
00816               VECTOR3 position(0,0,1);
00817               glLightfv(GL_LIGHT0, GL_POSITION, position._v);
00818               if (headlight)
00819                      glEnable(GL_LIGHT0);
00820               else
00821                      glDisable(GL_LIGHT0);
00822
00823               checkExtSupport();
00824
00826               glTexGeni(GL_S, GL_TEXTURE_GEN_MODE, GL_SPHERE_MAP);
00827               glTexGeni(GL_T, GL_TEXTURE_GEN_MODE, GL_SPHERE_MAP);
00828
00829               initialized = true;
00830        }
00831
00832        if (!sceneInitialized && scene)
00833        {
00834               wxStopWatch sw;
00835               clearCachedGeometry();
00836               size_t nodesCount = 0;
00837               BVH * bvh = scene->GetBVH();
00838               if (bvh)
00839               {
00840                      std::deque<NODE_ID> nodes;
00841                      bvh->GetGeometryNodeIDs(&nodes, bvh->GetRoot());
00842                      nodesCount = nodes.size();
00843                      size_t maxID = scene->GetNodeMaxID();
00844                      resetNodes.resize(maxID, false);
00845                      reset = true;
00846
00847                      for (std::deque<NODE_ID>::const_iterator nodeIt = nodes.begin();
00848                              nodeIt != nodes.end(); nodeIt++)
00849                      {
00850                             const GeometryNode * node = (const GeometryNode *)scene->GetNode(*nodeIt);
00852                             buildTexture(node);
00854                             drawShader(node);
00855                      }
00857                      if (maxID > VBOIDs.size())
00858                             VBOIDs.resize(maxID);
00859                      if (maxID > dispListIDs.size())
00860                             dispListIDs.resize(maxID, GL_ID_NONE);
00861                      sceneInitialized = true;
00862               }
00863               LOGDEBUG(wxString::Format(wxT("<RenderGlModule>%i geometry nodes cached in %.3f secs"), nodesCount, 0.001f * sw.Time()));
00864        }
00865
00866        return initialized && sceneInitialized;
00867 }

bool RenderGlModule::IsExtensionSupported ( const char *  szTargetExtension  )  [static]

Check if GL extension is supported (NeHeGL).

Error getting extensions

Definition at line 753 of file RenderGlModule.cpp.

00754 {
00755        const unsigned char *pszExtensions = NULL;
00756        const unsigned char *pszStart;
00757        unsigned char *pszWhere, *pszTerminator;
00758
00759        // Extension names should not have spaces
00760        pszWhere = (unsigned char *) strchr( szTargetExtension, ' ' );
00761        if ( pszWhere || *szTargetExtension == '\0' )
00762               return false;
00763
00764        // Get Extensions String
00765        pszExtensions = glGetString( GL_EXTENSIONS );
00766        if (!pszExtensions)
00768               return false;
00769
00770        // Search The Extensions String For An Exact Copy
00771        pszStart = pszExtensions;
00772        for (;;)
00773        {
00774               pszWhere = (unsigned char *) strstr( (const char *) pszStart, szTargetExtension );
00775               if ( !pszWhere )
00776                      break;
00777               pszTerminator = pszWhere + strlen( szTargetExtension );
00778               if ( pszWhere == pszStart || *( pszWhere - 1 ) == ' ' )
00779                      if ( *pszTerminator == ' ' || *pszTerminator == '\0' )
00780                             return true;
00781               pszStart = pszTerminator;
00782        }
00783        return false;
00784 }

int RenderGlModule::GetOglPrimitiveType ( GeometryTriangles::PRIMITIVE_TYPE  primType  )  [inline, static]

Convert primitive type from GeometryTriangles::PRIMITIVE_TYPE to OpenGL definitions.

Definition at line 986 of file RenderGlModule.cpp.

00987 {
00988        switch (primType)
00989        {
00990        case GeometryTriangles::TRI_LIST:
00991               return GL_TRIANGLES;
00992        case GeometryTriangles::TRI_FAN:
00993               return GL_TRIANGLE_FAN;
00994        case GeometryTriangles::TRI_STRIP:
00995               return GL_TRIANGLE_STRIP;
00996        case GeometryTriangles::POLYGON:
00997               return GL_POLYGON;
00998        case GeometryTriangles::LINES:
00999               return GL_LINES;
01000        case GeometryTriangles::LINE_STRIP:
01001               return GL_LINE_STRIP;
01002        case GeometryTriangles::POINTS:
01003               return GL_POINTS;
01004        case GeometryTriangles::QUADS:
01005               return GL_QUADS;
01006        default:
01007               return 0xffffffff;
01008        };
01009 }

Member Data Documentation

GLIDList VRUT::RenderGlModule::dispListIDs [protected]

GL IDs of cached geometry in display lists.

Definition at line 68 of file RenderGlModule.h.

VBOIDMap VRUT::RenderGlModule::vboIDMap [protected]

Map of geometry names to cached Gl VBO.

Definition at line 70 of file RenderGlModule.h.

VBOIDList VRUT::RenderGlModule::VBOIDs [protected]

GL IDs of cached geometry in display lists.

Definition at line 72 of file RenderGlModule.h.

TextureIDMap VRUT::RenderGlModule::textureIDMap [protected]

Map of texture filenames to cached Gl texture ID.

Definition at line 74 of file RenderGlModule.h.

GLIDList VRUT::RenderGlModule::textureIDs [protected]

GL IDs of scene textures.

Definition at line 76 of file RenderGlModule.h.

ShaderIDMap VRUT::RenderGlModule::shaderIDMap [protected]

Map of material names to cached Gl shader handler.

Definition at line 78 of file RenderGlModule.h.

bool VRUT::RenderGlModule::useVBO [protected]

Use VBO or display list?

Definition at line 80 of file RenderGlModule.h.

Parameter::ParameterIdentificator VRUT::RenderGlModule::useVBOParamID [protected]

useVBO param identificator

Definition at line 82 of file RenderGlModule.h.

bool VRUT::RenderGlModule::vboSupported [protected]

Is VBO supported?

Definition at line 84 of file RenderGlModule.h.

bool VRUT::RenderGlModule::shaderSupported [protected]

Is fragment shader?

Definition at line 86 of file RenderGlModule.h.

bool VRUT::RenderGlModule::wireframe [protected]

Draw wireframe?

Definition at line 88 of file RenderGlModule.h.

Parameter::ParameterIdentificator VRUT::RenderGlModule::wireframeParamID [protected]

wireframe param identificator

Definition at line 90 of file RenderGlModule.h.

bool VRUT::RenderGlModule::lighting [protected]

Enable lighting?

Definition at line 92 of file RenderGlModule.h.

Parameter::ParameterIdentificator VRUT::RenderGlModule::lightingParamID [protected]

lighting param identificator

Definition at line 94 of file RenderGlModule.h.

bool VRUT::RenderGlModule::headlight [protected]

Enable headlight?

Definition at line 96 of file RenderGlModule.h.

Parameter::ParameterIdentificator VRUT::RenderGlModule::headlightParamID [protected]

headlight param identificator

Definition at line 98 of file RenderGlModule.h.

bool VRUT::RenderGlModule::initialized [protected]

Is GL initialized - global GL states.

Definition at line 100 of file RenderGlModule.h.

bool VRUT::RenderGlModule::sceneInitialized [protected]

Is scene initialized - display lists, VBOs, textures...

Definition at line 102 of file RenderGlModule.h.

std::vector<bool> VRUT::RenderGlModule::resetNodes [protected]

Nodes (new nodes or modified nodes) to be reinitialized next draw cycle.

Definition at line 104 of file RenderGlModule.h.

bool VRUT::RenderGlModule::reset [protected]

Any node needs reset?

Definition at line 106 of file RenderGlModule.h.

wxMutex VRUT::RenderGlModule::paramsMutex [protected]

Mutex for any parameters accessed from Draw method and adjusted in processEvent (rendering is still in main thread).

Definition at line 108 of file RenderGlModule.h.

bool VRUT::RenderGlModule::drawBVH [protected]

Are BVH AABBs to be drawn?

Definition at line 110 of file RenderGlModule.h.

Parameter::ParameterIdentificator VRUT::RenderGlModule::drawBVHParamID [protected]

drawBVH param identificator

Definition at line 112 of file RenderGlModule.h.

size_t VRUT::RenderGlModule::texturesUsedLast [protected]

Textures used in the last draw cycle.

Definition at line 114 of file RenderGlModule.h.

bool VRUT::RenderGlModule::sceneImportMode [protected]

Is scene being imported and render data cached?

Definition at line 116 of file RenderGlModule.h.

bool VRUT::RenderGlModule::allowRedundantDeletes [protected]

Allow redundant deletes of cached data during scene import? Can fix problems with caching during import (missing textures) but slightly slower

Definition at line 119 of file RenderGlModule.h.

Parameter::ParameterIdentificator VRUT::RenderGlModule::allowRedundantDeletesParamID [protected]

allowRedundantDeletes param identificator

Definition at line 121 of file RenderGlModule.h.

bool VRUT::RenderGlModule::vboRenderUpdated [protected]

Ensures render update only once when building VBOs auxiliary.

Definition at line 123 of file RenderGlModule.h.

Scene* VRUT::RenderGlModule::scene [protected]

Temporary scene pointer (valid only during Draw call).

Definition at line 125 of file RenderGlModule.h.

PFNGLGENBUFFERSARBPROC VRUT::RenderGlModule::glGenBuffersARB [protected]

GL function prototypes for VBO support.

Definition at line 127 of file RenderGlModule.h.

PFNGLBINDBUFFERARBPROC VRUT::RenderGlModule::glBindBufferARB [protected]

Definition at line 128 of file RenderGlModule.h.

PFNGLBUFFERDATAARBPROC VRUT::RenderGlModule::glBufferDataARB [protected]

Definition at line 129 of file RenderGlModule.h.

PFNGLDELETEBUFFERSARBPROC VRUT::RenderGlModule::glDeleteBuffersARB [protected]

Definition at line 130 of file RenderGlModule.h.

PFNGLCREATEPROGRAMOBJECTARBPROC VRUT::RenderGlModule::glCreateProgramObjectARB [protected]

GL extensions for shader.

Definition at line 132 of file RenderGlModule.h.

PFNGLCREATESHADEROBJECTARBPROC VRUT::RenderGlModule::glCreateShaderObjectARB [protected]

Definition at line 133 of file RenderGlModule.h.

PFNGLSHADERSOURCEARBPROC VRUT::RenderGlModule::glShaderSourceARB [protected]

Definition at line 134 of file RenderGlModule.h.

PFNGLCOMPILESHADERARBPROC VRUT::RenderGlModule::glCompileShaderARB [protected]

Definition at line 135 of file RenderGlModule.h.

PFNGLATTACHOBJECTARBPROC VRUT::RenderGlModule::glAttachObjectARB [protected]

Definition at line 136 of file RenderGlModule.h.

PFNGLLINKPROGRAMARBPROC VRUT::RenderGlModule::glLinkProgramARB [protected]

Definition at line 137 of file RenderGlModule.h.

PFNGLUSEPROGRAMOBJECTARBPROC VRUT::RenderGlModule::glUseProgramObjectARB [protected]

Definition at line 138 of file RenderGlModule.h.

PFNGLDELETEOBJECTARBPROC VRUT::RenderGlModule::glDeleteObjectARB [protected]

Definition at line 139 of file RenderGlModule.h.

PFNGLGETINFOLOGARBPROC VRUT::RenderGlModule::glGetInfoLogARB [protected]

Definition at line 140 of file RenderGlModule.h.

PFNGLGETOBJECTPARAMETERIVARBPROC VRUT::RenderGlModule::glGetObjectParameterivARB [protected]

Definition at line 141 of file RenderGlModule.h.

PFNGLGETUNIFORMLOCATIONARBPROC VRUT::RenderGlModule::glGetUniformLocationARB [protected]

Definition at line 142 of file RenderGlModule.h.

PFNGLUNIFORM1FVARBPROC VRUT::RenderGlModule::glUniform1fvARB [protected]

Definition at line 143 of file RenderGlModule.h.

PFNGLUNIFORM2FVARBPROC VRUT::RenderGlModule::glUniform2fvARB [protected]

Definition at line 144 of file RenderGlModule.h.

PFNGLUNIFORM3FVARBPROC VRUT::RenderGlModule::glUniform3fvARB [protected]

Definition at line 145 of file RenderGlModule.h.

PFNGLUNIFORM4FVARBPROC VRUT::RenderGlModule::glUniform4fvARB [protected]

Definition at line 146 of file RenderGlModule.h.

PFNGLUNIFORM1IVARBPROC VRUT::RenderGlModule::glUniform1ivARB [protected]

Definition at line 147 of file RenderGlModule.h.

PFNGLUNIFORM2IVARBPROC VRUT::RenderGlModule::glUniform2ivARB [protected]

Definition at line 148 of file RenderGlModule.h.

PFNGLUNIFORM3IVARBPROC VRUT::RenderGlModule::glUniform3ivARB [protected]

Definition at line 149 of file RenderGlModule.h.

PFNGLUNIFORM4IVARBPROC VRUT::RenderGlModule::glUniform4ivARB [protected]

Definition at line 150 of file RenderGlModule.h.

PFNGLUNIFORMMATRIX2FVARBPROC VRUT::RenderGlModule::glUniformMatrix2fvARB [protected]

Definition at line 151 of file RenderGlModule.h.

PFNGLUNIFORMMATRIX3FVARBPROC VRUT::RenderGlModule::glUniformMatrix3fvARB [protected]

Definition at line 152 of file RenderGlModule.h.

PFNGLUNIFORMMATRIX4FVARBPROC VRUT::RenderGlModule::glUniformMatrix4fvARB [protected]

Definition at line 153 of file RenderGlModule.h.

PFNGLACTIVETEXTUREPROC VRUT::RenderGlModule::glActiveTexture [protected]

Definition at line 154 of file RenderGlModule.h.

PFNGLUNIFORM1IARBPROC VRUT::RenderGlModule::glUniform1iARB [protected]

Definition at line 155 of file RenderGlModule.h.

The documentation for this class was generated from the following files:
Generated on Tue Mar 10 14:41:44 2009 for VRUT by  doxygen 1.5.5
